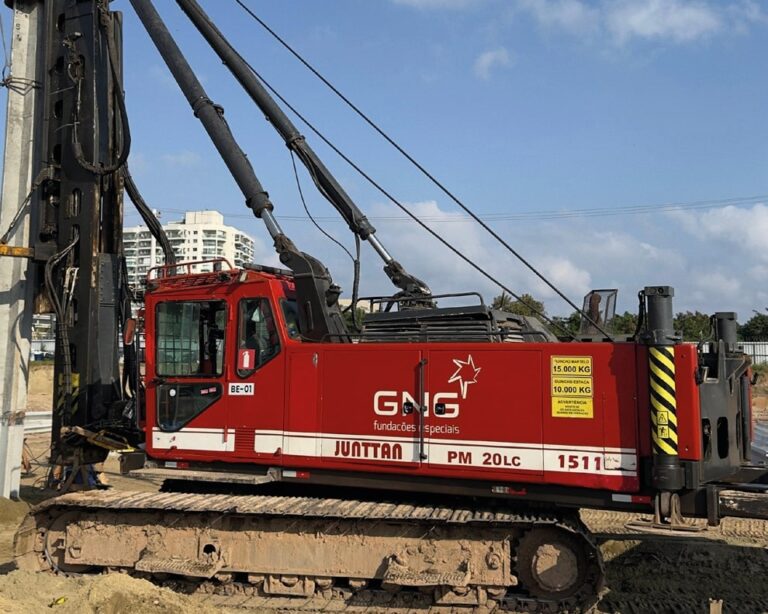

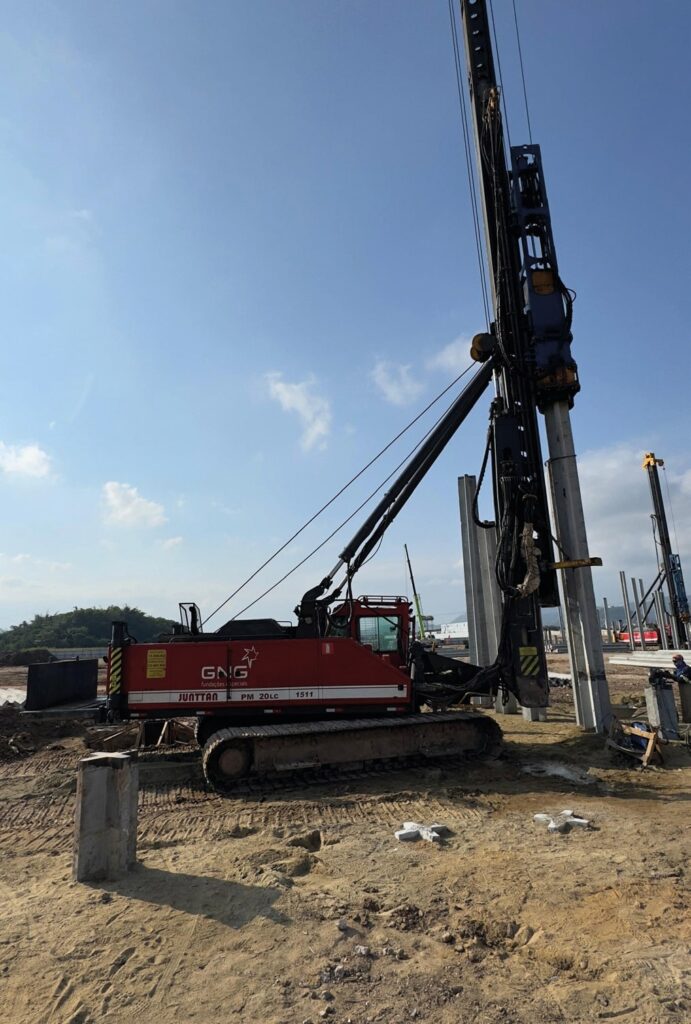

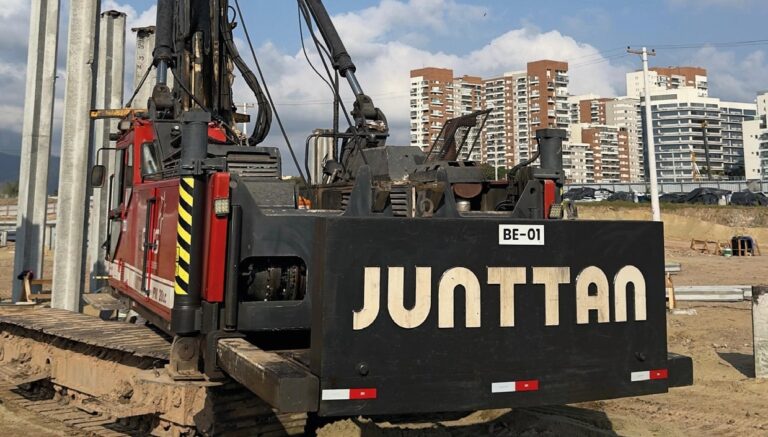

PM20 LC HYDRAULIC HAMMER ON CRAWLER
PM20 LC HYDRAULIC HAMMER ON CRAWLER
Equipment technical data
SERIAL NUMBER:
1511
YEAR OF MANUFACTURE:
2008
TOTAL WORKING WEIGHT:
47.600 kg
TOTAL TRANSPORT WEIGHT:
39.000 kg
TRANSPORT WIDTH:
3,15m
TRANSPORTATION LENGTH:
17,70m
TRANSPORTATION HEIGHT:
3,70m
HYDRAULIC HAMMER:
HHK5AS
HAMMER SERIAL NUMBER:
21092
PESTLE WEIGHT:
5.000 kg
MAXIMUM FALL HEIGHT:
1.200mm
MAXIMUM IMPACT ENERGY:
59kNm
MAXIMUM PILE LENGTH:
18,00m
