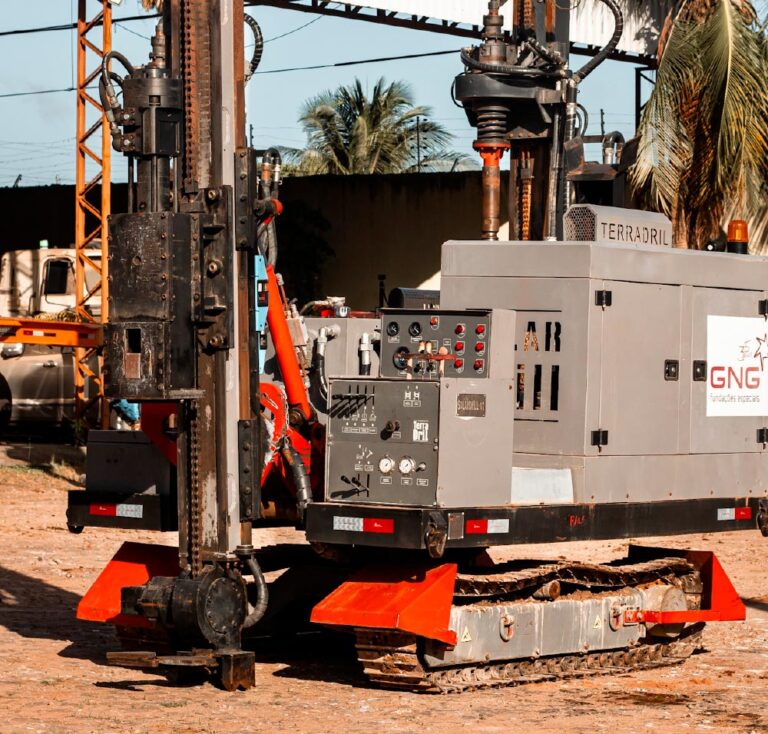

INCA PILING SOLARDRILL
INCA PILING SOLARDRILL
Equipment technical data
Motor
BRAND/MODEL:
MWM 229 - 4 CYLINDERS
POWER:
61 kW / 83 cv a 2400 rpm
RESERVOIR:
80 Litros
Base Car
LENGTH:
2.200 mm
SHOE WIDTH:
400 mm
GROUND PRESSURE:
4,06 N/cm2
TRANSLATION SPEED:
2 km/h
HYDRAULIC MOTOR:
518T
OUTPUT ROTATIONS:
24 - 47 rpm
OUTPUT TORQUES:
962/484 Nm
Hammer
MODEL:
Indeco HP 700 FS
ENERGY PER BLOW:
950J
BLOW PER MINUTE:
620-1500
HAMMER WEIGHT:
300 kg
POINTER DIAMETER:
80mm
WORK PRESSURE:
130 bar
Transport Dimensions
LENGTH:
5.200 mm
HEIGHT:
3.000mm
TOTAL WIDTH:
2.120mm
WEIGHT:
4.690kg
