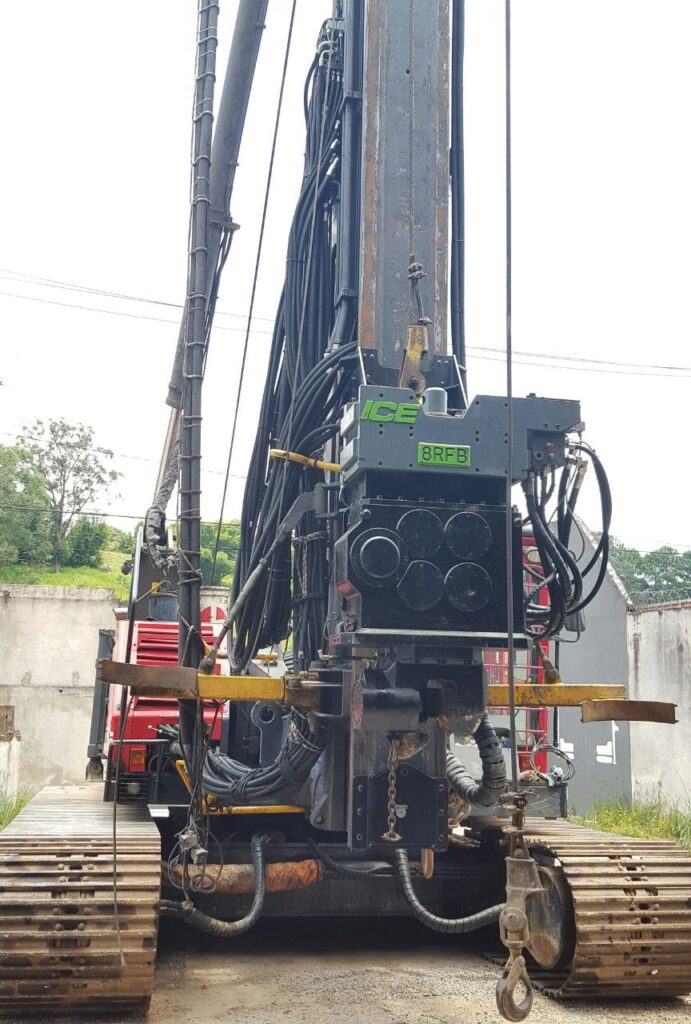

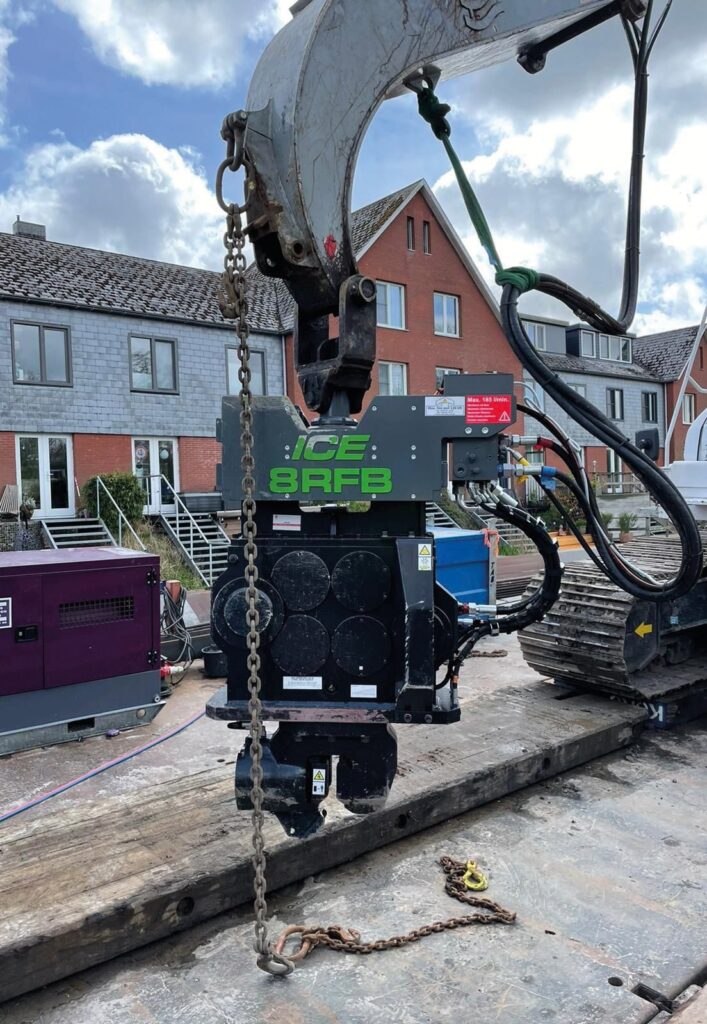

ICE 8RFB VIBRATORY HAMMER

gng-special-foundations-equipment-ice-8rfb-vibratory-hammers (3)
gng-special-foundations-equipment-ice-8rfb-vibratory-hammers (2)

Equipment technical data

  • ECCENTRIC MOMENT: 0-7.5Kgm
  • MAXIMUM CENTRIFUGAL FORCE: 0-435KN
  • MAXIMUM FREQUENCY: 2.300 rpm
  • MAXIMUM EXCL RANGE: 15mm
  • MAXIMUM INCLINED AMPLITUDE: 13,8mm
  • MAXIMUM OPERATING PRESSURE: 350bar
  • MAXIMUM OIL FLOW: 185 I/min
  • TRANSPORTATION WEIGHT: 1.615Kg
