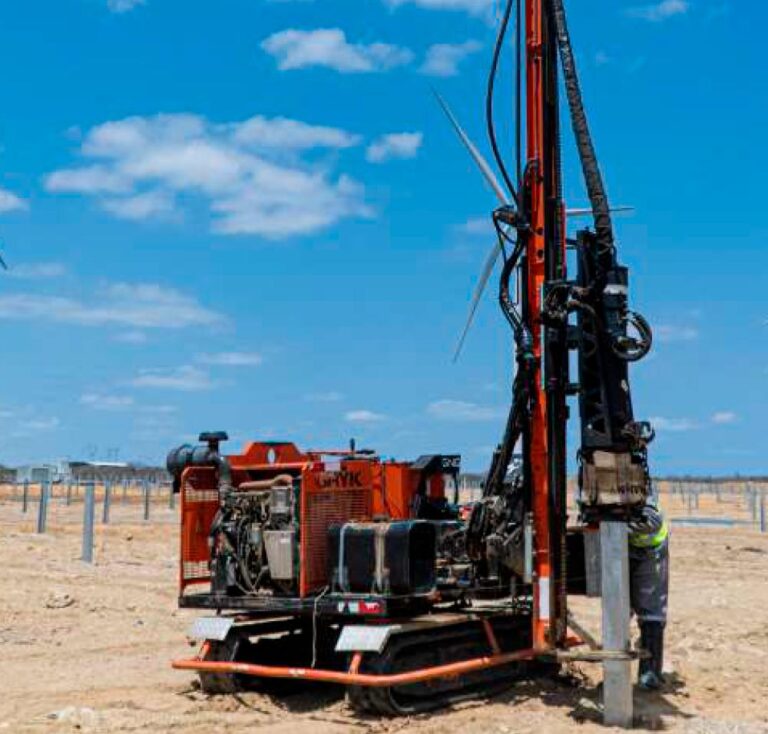

PRE-DRILLING LINK JET 500S

link-jet-500s-gng-special-foundations-equipment-projects

Equipment technical data

Motor
  • BRAND/MODEL: HATZ 4H50TIC
  • POWER: 48,3 HP(36 KW)
  • REFRIGERATION: Água
Base Car
  • MAXIMUM WORKING INCLINE: 20º
  • MAXIMUM HEIGHT OF STAKES: 4m
  • MAXIMUM TOWER EXPANSION: +1m (optional)
  • SELF-LEVELING SYSTEM (TOWER): Yes
  • GPS SYSTEM: Opcional
  • PRE-DRILLING SYSTEM (DTH/AUGER)): Optional
  • HYDRAULIC SYSTEM: BONFIGIOLI
  • MAXIMUM PRESSURE: 180 bar
Hammer
  • MODEL: ATLAS COPCO IM405
  • IMPACT ENERGY: 1100 J
  • BLOW PER MINUTE: 530 - 1150
  • HAMMER WEIGHT: 397 ibs (180 Kg)
Transport Dimensions
  • LENGTH: 5,0 m
  • HEIGHT: 2,5 m
  • TOTAL WIDTH: 2,0 m
  • WEIGHT:3.800 kg
